CBN kotouče pro broušení hřídelí
This type of wheel is suitable for high-efficient heavy grinding of camshaft of automobile parts. The wheel speed is 80m/s-160m/s, designed to used on CNC Cam Grinders like Toyota,Schaudt,Landis etc.

HongTuo is now a very experienced camshafts grinding wheel supplier for all types of camshafts ranging from the smallest motorbike camshafts to the largest truck Diesel engine camshafts. Bearing Journals, Standard cam lobes and reentry concave cam files are applications where HongTuo vitrified bond CBN hase proven itself to be a world-class product.

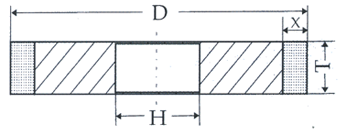

FEPA Code D T H X
1A1 150 6 32 3、5
1A1 150 8 32 3、5
1A1 150 10 32 3、5
1A1 150 12 32 3、5
1A1 200 10 32 3、5
1A1 200 15 32 3、5
1A1 200 20 32 3、5
1A1 200 25 32 3、5
1A1 250 10 75、152.4 3、5
1A1 250 13 75、152.4 3、5
1A1 250 18 75、152.4 3、5
1A1 250 22 75、152.4 3、5
1A1 300 12 152.4、127 3、5
1A1 300 15 152.4、127 3、5
1A1 300 20 152.4、127 3、5
1A1 300 25 152.4、127 3、5
1A1 300 30 152.4、127 3、5
1A1 350 15 152.4、100、40、25 3、5
1A1 350 18 152.4、100、40、25 3、5
1A1 350 19 152.4、100、40、25 3、5
1A1 350 20 152.4、100、40、25 3、5
1A1 350 30 152.4、100、40、25 3、5
1A1 400 14 100 3、5、8
1A1 400 20 100 3、5、8
1A1 400 22 100 3、5、8
1A1 400 25 100 3、5、8
1A1 450 15 100 3、5、8
1A1 450 25 100 3、5、8
1A1 450 35 100 3、5、8
1A1 450 40 100 3、5、8
According to customer's requirements.

Order example:

 PEPA code D T H X Abrasive Grain size Bond Concentration Grade

Vitrified bond

 1A1 150 6 32 3 D 120 V 150 N
